Linear vs. non-linear
collections of objects

linear	non-linear
access of elements is sequential	access along branching paths
unique first element	may be many "first" elements
unique last element	may be many "last" elements
each interior element has a unique successor	each element may have multiple successors
one-dimensional	two-dimensional (or more)
e.g.: arrays vectors linked lists stacks queues	e.g.: trees graphs

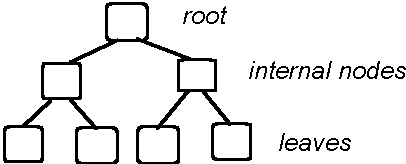

Trees

A note on graphs

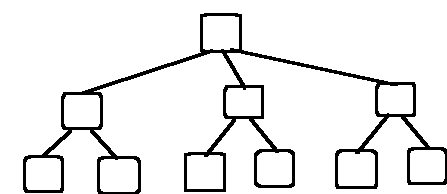

tree of degree 3


tree of degree 2

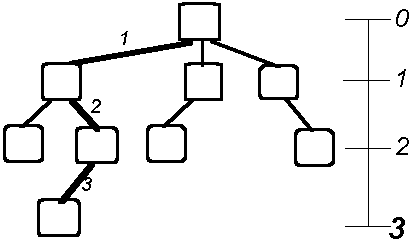

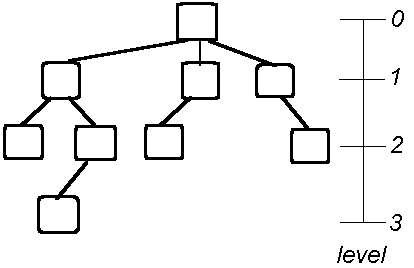

• - root level is zero
• - children of root are at level one
• - grandchildren of root are at level two
• - etc.



Density of a tree

• density is related to the number of nodes per level of the tree


• measures the size of a tree by considering the number of nodes in the tree relative to the depth of the tree

• the potential density of a tree is related to its degree

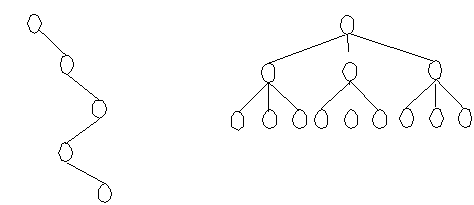

Two extremes of tree density

• degenerate tree

• - a "thin" tree

  • - has only one leaf node

  • - the root and each interior node has only one child

  • => to which data structure is this equivalent?

• full tree

  • - every non-leaf node has maximum number of children allowed by the degree of the tree


Advantages of higher density

• the path length from root to any node in the tree is less for denser trees

• there are proportionately more elements near the top of dense trees

• dense trees allow for
  • - large collections of data
  • - rapid access: time proportional to the height of the tree

• Caution !!
  definitions can vary slightly from author to author:

• - some authors define the root as being at level "1" rather than level "0"
• - some authors say that an empty tree has depth "0" and that a one-node tree has depth "1"



Moral: State your assumptions!!

Examples of trees

• family tree
• company organization

• parse tree

• expression tree

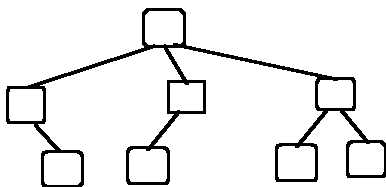

Binary trees

• recursive definition of a binary tree:

  • - the empty tree is a binary tree
  • - a node whose left child is a binary tree and whose right child is a binary tree is a binary tree

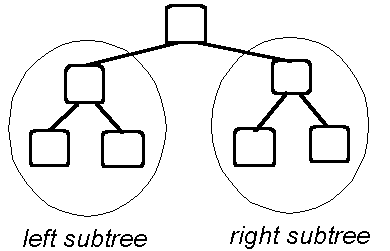

• the subtree rooted at the left child of a node is its left subtree

• the subtree rooted at the right child of a node is its right subtree

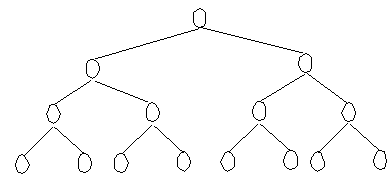

Complete binary trees

• the top n-1 levels form a full tree
• the leaf nodes at level n occupy the left-most positions
  i.e. the leaves are filled in from left to right

• the longest path from the root to a leaf is O(log n)


=>maximal number of leaves with minimal path length

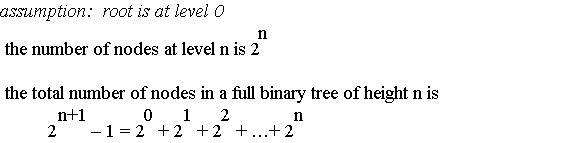

Properties of full binary trees

Properties of complete binary trees

• M, the number of nodes in a complete binary tree of height n, satisfies the inequality


• solving the inequality for n gives
  n < log M < n + 1


• this gives a formula for finding the minimum depth of a binary tree

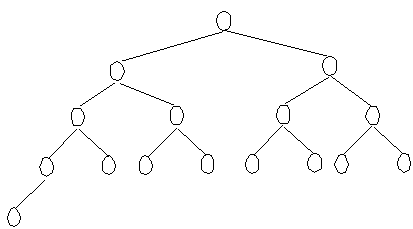

B>Properties of path length

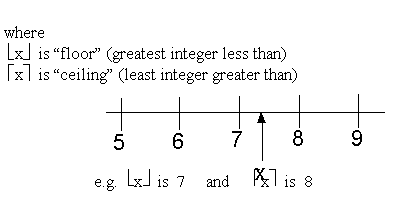

• A binary tree with M nodes will have at least one path with path length floor(log M)


• In a complete binary tree with M nodes:
  - longest path has length floor(log M)

• - longest path traverses ceiling (log M) nodes

• Example of path length


Consider a tree where M , the number of nodes in the tree, is 10,000

• for a degenerate tree with M nodes, there's one path:

  • path length

    • = M - 1
    • = 9,999

• for a complete binary tree with M nodes:

  • maximum path length

    • = floor (log 10,000 )
    • = floor(13.28)
    • = 13


Implementing binary trees

access to the tree is via a pointer to the root node

each node contains

• - a field for the data value
  - a pointer reference to the root of the left subtree
  - a pointer reference to the root of the right subtree


leaf nodes have null left and right pointers

example: the empty tree

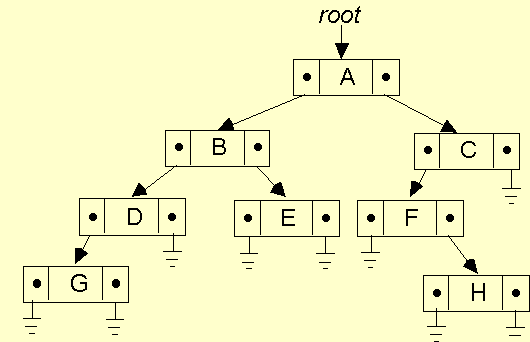

Example:

• correspondence between an abstract tree and its tree implementation

Choices for implementation

• vector-based implementation

  • - good representation if the tree is relatively full

  • - poor if tree changes frequently



• pointer-based implementation

  • - good if tree changes frequently
    - allows dynamic management of nodes

  • - Budd's implementation, the node class, is defined beginning on p. 285



Manipulating binary trees

Tree traversals

• want to visit every node in the given tree
• since non-linear, there are several possible orders for the visit
• regardless of the order of visits, will want to access
  • - the root (or node)
  • - the left subtree
  • - the right subtree
• the order of visitation can vary

  • - the node may be visited 1st, 2nd, 3rd
  • - left subtree may be 1st, 2nd, 3rd
  • - right subtree may be 1st, 2nd, 3rd

a total of six different organized orderings

NLR LNR LRN NRL RNL RLN

Traversal types

• preorder traversal NLR


  • - 1st: visit root
  • - 2nd: visit left subtree

  • - 3rd: visit right subtree

• inorder traversal LNR

  • - 1st: visit left subtree
  • - 2nd: visit root
  • - 3rd: visit right subtree

• postorder traversal LRN

  • - 1st: visit left subtree
  • - 2nd: visit right subtree
  • - 3rd: visit root
  level-order traversal


  • - begin at root
  • - visit nodes across each successive level from left-to-right

  Example of tree traversal methods




  traversal method	order of node visits
  preorder	A B D G C E H I F
  inorder	G D B A H E I C F
  postorder	G D B H I E F C A
  level-order	A B C D E F G H I

  Implementation of tree traversal: direct manipulation


  • can implement tree traversal by directly traversing the tree using the pointer structure of the nodes
    • - an implementation is suggested by Budd on pp. 295-296 of the textbook
    • - effect of the procedure process

      • > depends on the application
      • > important point: every node must eventually be processed

    • time complexity

      • - each procedure performs constant work at each node
      • - iterating over n elements in a tree can be done in O(n) steps, regardless of traversal method

    Implementation of tree traversal: iterators

    problems with direct manipulation:
    - non-general
    - requires access to internal structure

    in iterator solution
    - declare iterator variable
    - use normal iterator loop on the declared iterator variable

    requirements for implementation
    - correct order of visiting nodes
    - shouldn't retraverse the tree
    =>keep information to continue the traversal from branch points
    - use the least amount of extra memory possible


    Using the tree iterators
    Budd's implementations of the iterators

    - preorder traversal begins on p. 299
    - inorder traversal begins on p. 302
    - postorder traversal begins on p. 297
    - level-order traversal begins on p. 304


  • example of use: // use any of following declarations:
    preorderTreeTraversal<T> itr(aTree);
    inorderTreeTraversal<T> itr(aTree);
    postorderTreeTraversal<T> itr(aTree);
    levelorderTreeTraversal<T> itr(aTree);

    // loop then does traversal based on
    // declaration that was given
    for ( itr.init() ; ! itr ; itr++ )
    process ( itr() );

  • Preorder traversal NLR


    input is root use stack to trace path from root to current node

    initialization: push root on stack
    invariant: for each node on stack

    - all left children are being processed

    - no right child has been processed


    space complexity: O(log n)
    time complexity: O(1) for initialization, O(n) for processing

    Inorder traversal LNR



    input is root use stack to trace path from root to current node

    initialization: "slidedown" to leftmost descendent of root

    invariant: for each node on stack

    - left children are being processed

    - no right child has been processed



    space complexity: O(log n)
    time complexity: O(1) for initialization , O(n) for processing

    Postorder traversal LRN


    input is root stacks all elements in reverse order of visitation

    initialization: push current node followed by right children then left children
    invariant: top node on stack is next to be processed


    space complexity: O(n)

    time complexity: O(n) for initialization , O(1) for processing

    Level-order traversal


    input is root to begin, enqueue kids as process

    initialization: enqueue root

    invariant: nodes in queue reflect left-to-right ordering based on order of parents being visited

    space complexity: O(n)

    time complexity: O(n)



    ---
